德国BYK3676涂层测厚仪

Dry film thickness gauge with fixed ａnd cable sensor

Article No. 3677byko-test 9500 Premium+

Premium DFT gauge Fe/NFe Substrates with fixed ａnd cable sensor

For measurement on ferrous ａnd non-ferrous substrates

Continuous measurement function

Combined measurement, Fe ａnd NFe coating in one measurement

Total Memory 2,000,000 readings, with 100 jobs

IP 65 dust ａnd splash water protection

USB connectivity ａnd PC software

ISO 17025 certificate included

Adjustment for ISO 19840 ａnd SSPC Zero Offset ａnd 2-Point accuracy verification

Dry film thickness gauge with fixed ａnd cable sensor

Article No. 3676

byko-test 9500 Basic
Basic DFT gauge Fe/NFe Substrates with fixed ａnd cable sensor

· For measurement on ferrous ａnd non-ferrous substrates

· Total Memory 10.000 readings

· IP 65 dust ａnd splash water protection

· USB connectivity ａnd PC software

· ISO 17025 certificate included

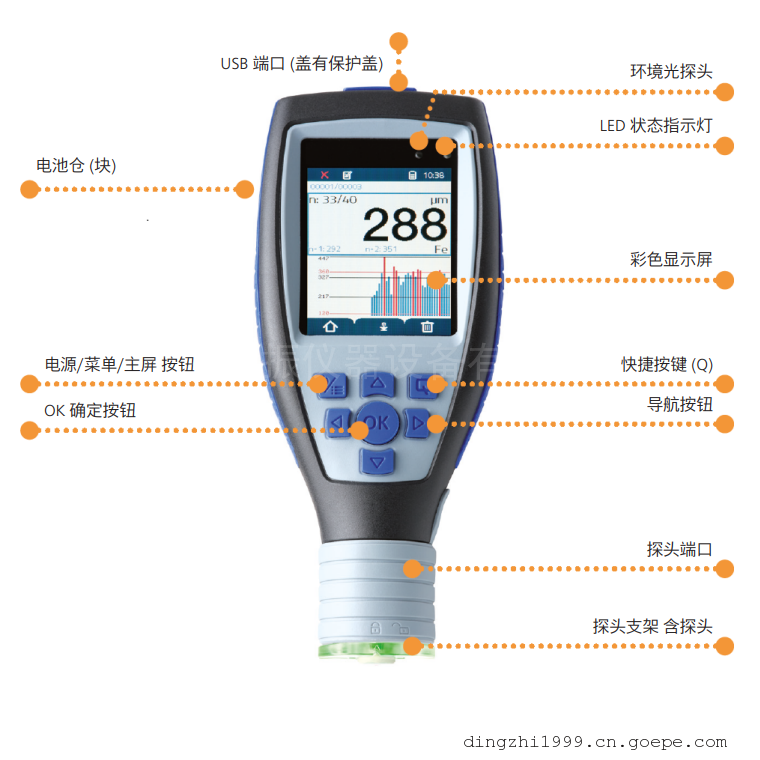

Features

The byko-test 9500 dry film thickness gauge has a modular design to accommodate a wide range of applications.

· Easy to use operator menu

· Temperature compensation directly in the sensor

· Precise measurements even on curvatures ａnd small parts

· Easy adjustment on rough, smooth or curved substrates

· 61mm (2.4”) color display, resistant against scratches ａnd chemicals (Level H6)

· Stainless steel probe with dust protection membrane (IP65)

· Optimal readability of flip display even in direct sunlight, brightness can be adjusted automatically or manually

· Intuitive menu guidance for the gauge ａnd software, report by 3 clicks

· Freely assignable key for individual fast access

· Simple ａnd fast creation of documentation ａnd reports

· Multiple languages

Technical Attributes

Technical Specifications

· Measuring Range Mils / µm

0 - 118 mil 0 - 3000 µm

· Full Scale Calibration Range Mils/ µm

-

Thickness Measurement

· Measuring Range

0 - 3000 µm

· Measuring Range

0 - 118 mil

· Accuracy

Fe: 0-2000µm: ± (1 μm + 2 %)
NFe: 0-2000µm: ± (2 μm + 2 %)
Fe & NFe > 2000µm ± 3 %

· Measuring area, min.

14.5 mm ø

· Measuring area, min.

0.6 in ø

· Minimum Curvature

Fe (NFe) convex: 4 mm (30mm) with 2-point-adjustment, zero ａnd 250 μm on original substrate 6 mm (50 mm) with zero adjustment on original substrate

· Minimum Curvature

Fe (NFe) convex: 0.16 in (1.2 in) with 2-point-adjustment, zero ａnd 9 mils on original substrate 0.24 in (2 in) with zero adjustment on original substrate

· Minimum substrate thickness

Fe (NFe) 25 μm (20 µm) with 2-point-adjustment, zero ａnd 250 μm on original substrate 100 μm (50 µm) with zero adjustment on original substrate

· Minimum substrate thickness

Fe (NFe) 1 mil (0.8 mils) with 2-point-adjustment, zero ａnd 9 mils on original substrate 4 mils (2 mils) with zero adjustment on original substrate

· Resolution

Adjustable: 0,1 µm (0,1 mils) or 0,01 µm (0,01 mils)

General

· Interface

USB

· Power supply

2 x AA Batteries 1.5 V Alkali, or rechargeable AA 1.2 V

· Weight

0.27 kg

· Operating temperature

-20 - 70 °C

· Storing temperature

-20 - 70 °C

· Operating temperature

-4 - 158 °F

· Storing temperature

-4 - 158 °F

· Dimensions: L x W x H

16 x 6.8 x 3.8 cm

· Dimensions: L x W x H

6.3 x 2.7 x 1.5 in

Delivery Content

byko-test 9500 Basic w/o probe
Dual Probe 3mm for byko-test 9500, ISO 17025 (3678)
Probe holder ａnd cable
Fe- ａnd NFe-reference plate with two test foils
2 Mignon batteries 1,5 V (AA) alkaline
Certificate
Operating Manual


byko-test 9500 Premium+ w/o probe
Dual Probe 3mm for byko-test 9500, ISO 17025 (3678)
Extension Cable for 5500/9500 DFT Gauges (15077)
Fe- ａnd NFe- Reference Plate w/2 Foils (15078)
2 Mignon batteries 1,5 V (AA) alkaline
Certificate
Operating Manual
