型号：5867 加工定制：否 测量范围：100
允许最大高度：100 mm 重量：20 kg

Features

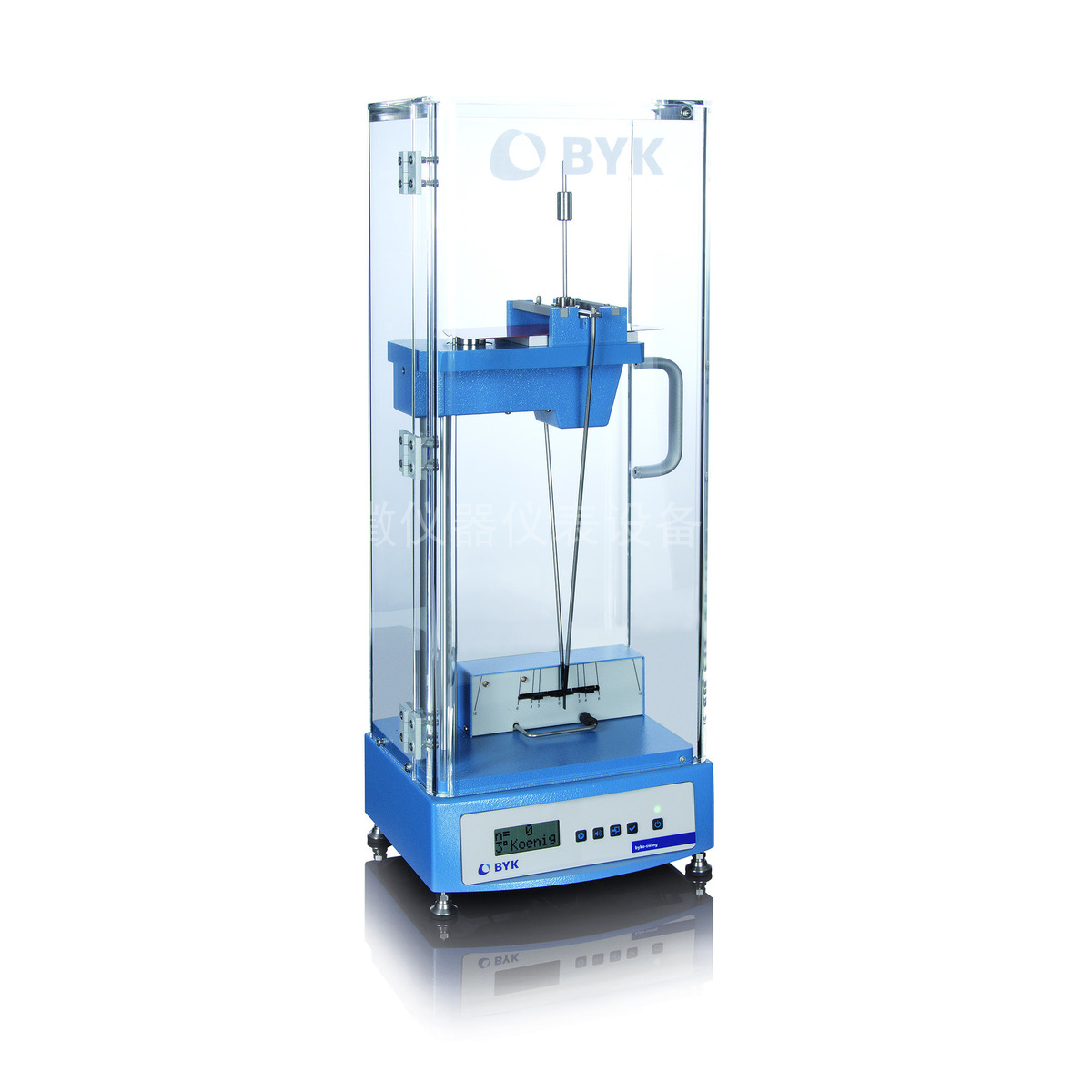

Automated design ensures reliable and repeatable measurement of coating hardness by reducing operator intervention
Motorized sample platform lifts the sample into the test position
Pendulum is positioned and released automatically
Automatic counter with signal when deflection is below 3° (König) or 4° (Persoz) respectively
Changeable from König to Persoz and vice versa with corresponding pendulum

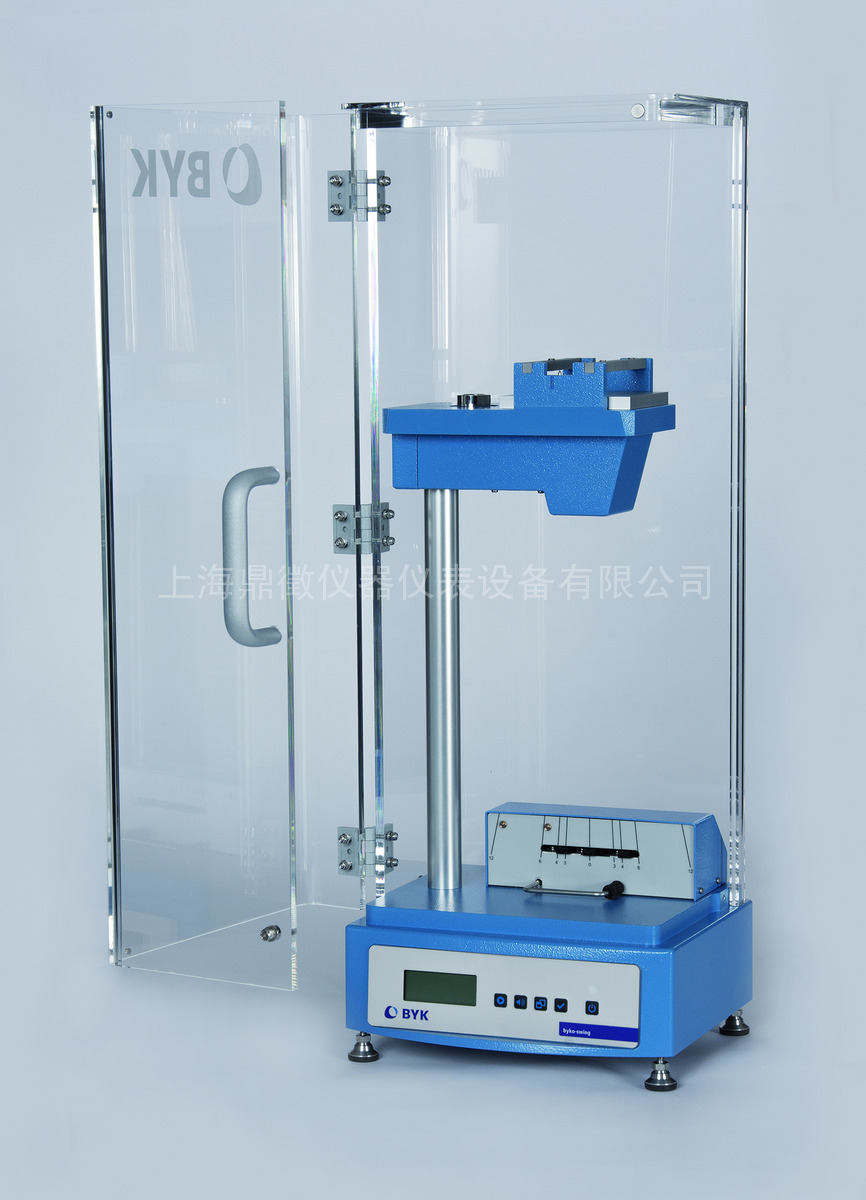

Pre-assembled draft shield with easy access door
UL/CE/CSA certification
Compliant with ASTM D4366 and ISO 1522
Smallest sample size: 65mm x 75mm (2.6 x 3.0 inches)
Largest sample size: 102mm x 229mm (4.0 x 9.0 inches)
Maximum sample thickness : 8.5mm (0.33 inches)
Minimum sample thickness is limited by the rigidity of the sample.

Technical Attributes

Power supply
100 - 240 V, 50/60 Hz, max. 1 A
Weight
18.4 kg
Weight
40.6 lb
Dimensions: L x W x H
25 x 28 x 77 cm
Dimensions: L x W x H
10 x 11 x 30.3 in
Weight
200 / 500 g ± 0.1
Ball Diameter
5 mm / 8 mm
Deflection Start/End
6°/3° or 12°/4°
Period of Oscillation
1.4 s / 1 s

Standards

ISO 1522

ASTM D4366

Delivery Content
Pendulum hardness tester
Protective cover
Pendulum König/Persoz (5856/5857)
Glass calibration standard
Open-end wrench to adjust instrument feet
Power supply
Manual

Accessories

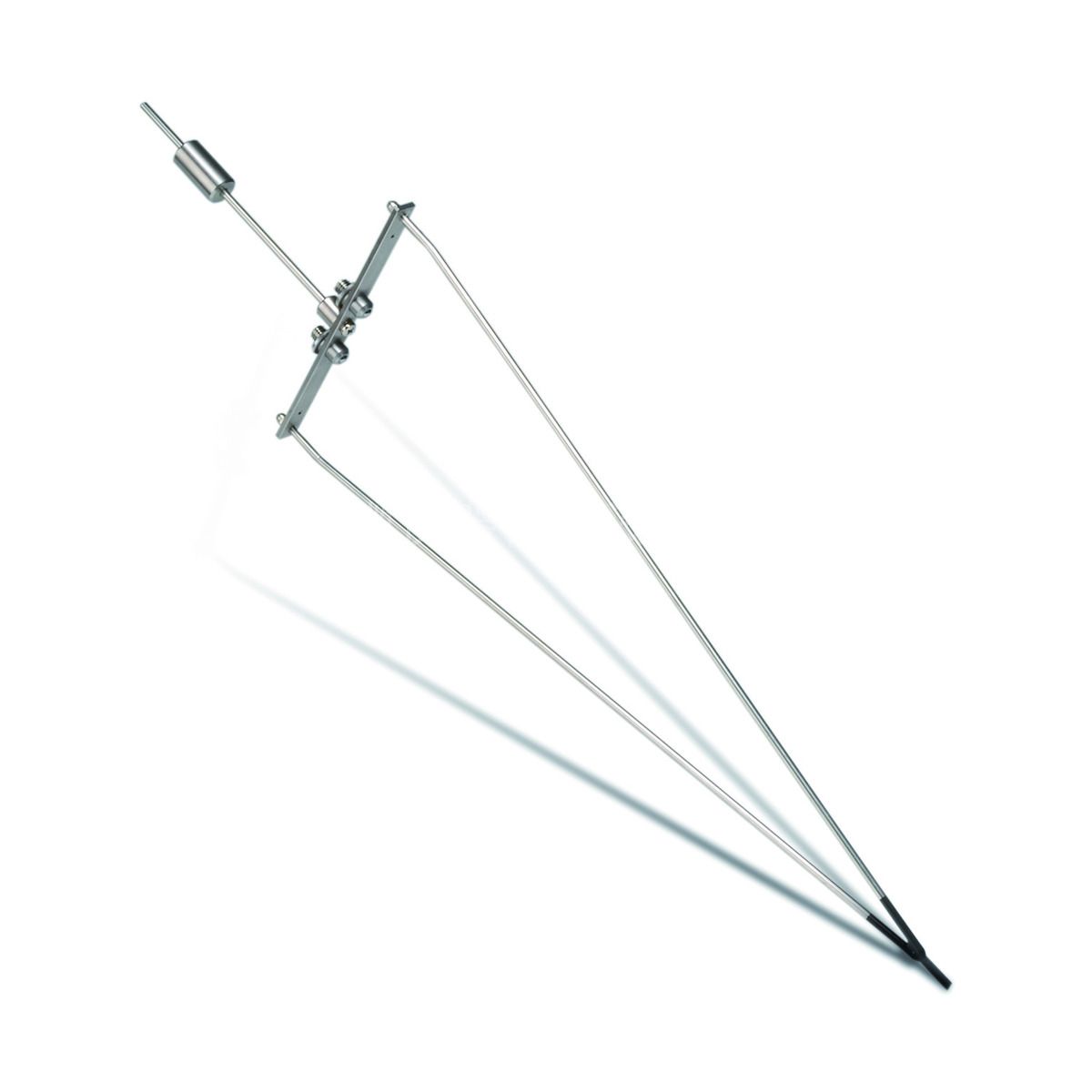

5856König Pendulum

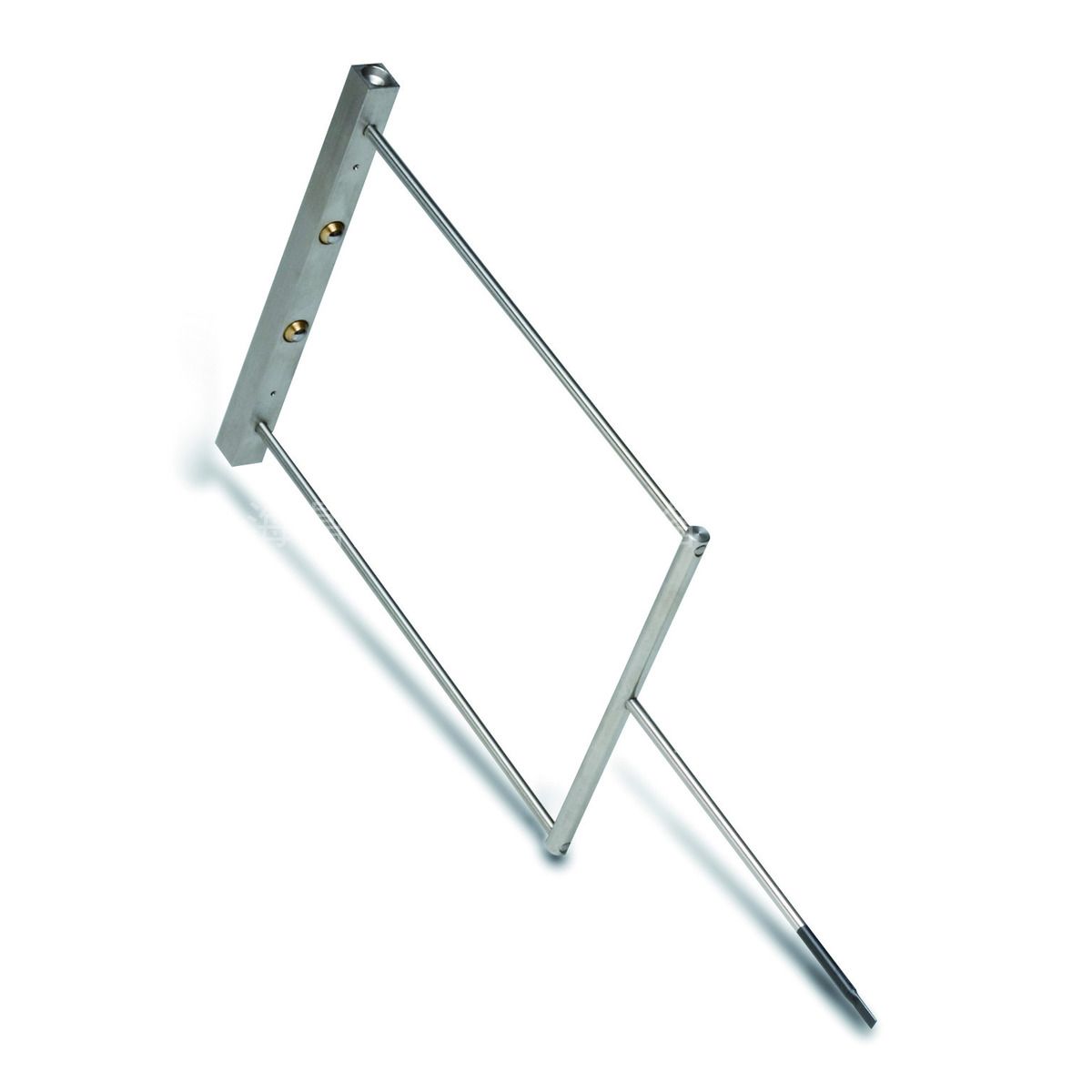

5857Persoz Pendulum
